EP500PRO Home Integration Kit

Write a review | Ask a question
US$619.00
US$619.00

0 0
Days
:
0 0
Hrs
:
0 0
Mins
:
0 0
Secs


Compatible Models: EP500PRO

EP500PRO Home Integration Kit (120V) : Connect the EP500Pro power system to the home main panel.
Including:
1×Sub Panel With a 30A Inlet Box Inside (Reliance)
1×30A Outlet Box (Reliance)
1×30A AC Charging Cable (L14-30)

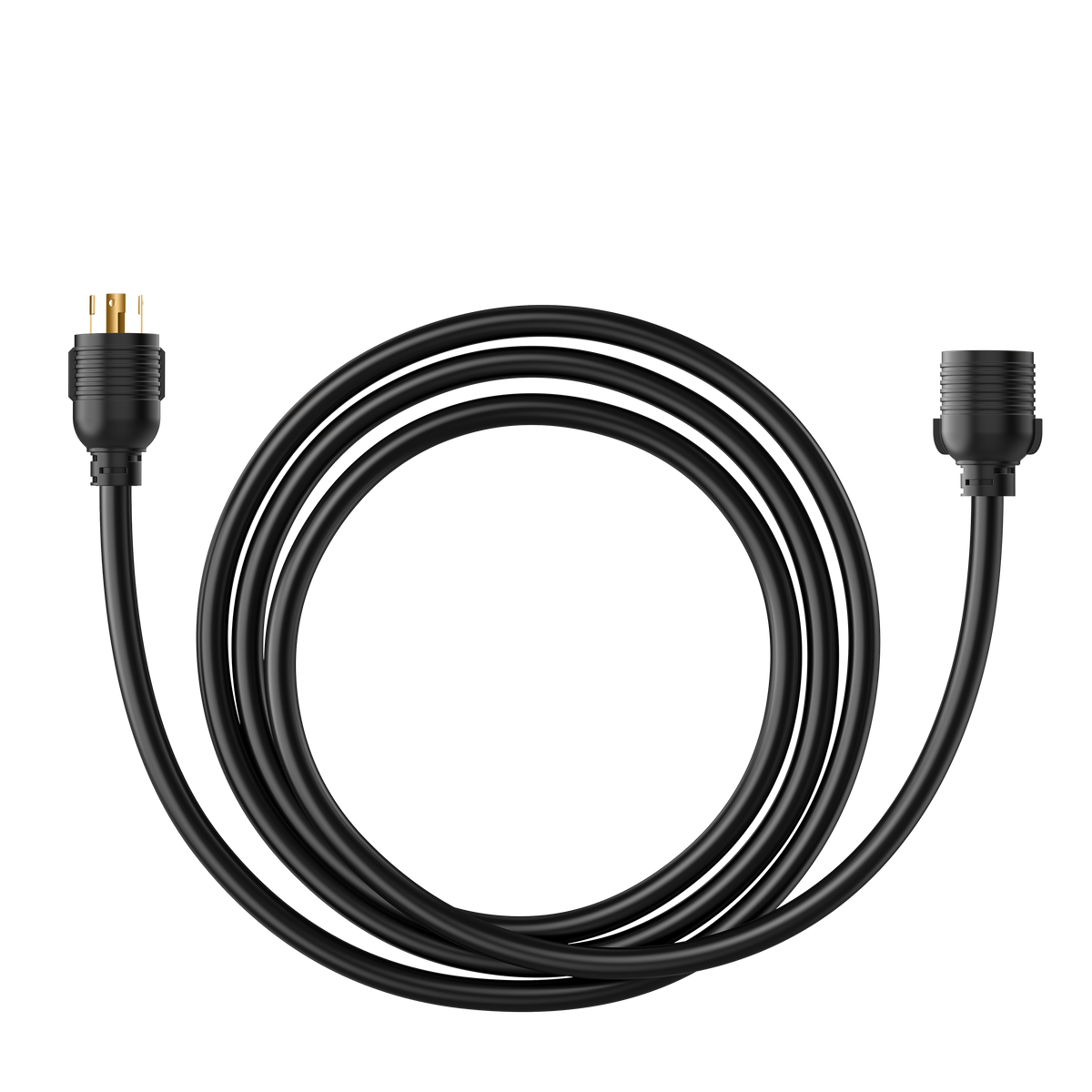

1×L14-30 to L14-30 Cable

EP500PRO Home Integration Kit (120V & 240V): Connect the EP500Pro split phase system to the home main panel (Require 2 EP500Pro)
Including:

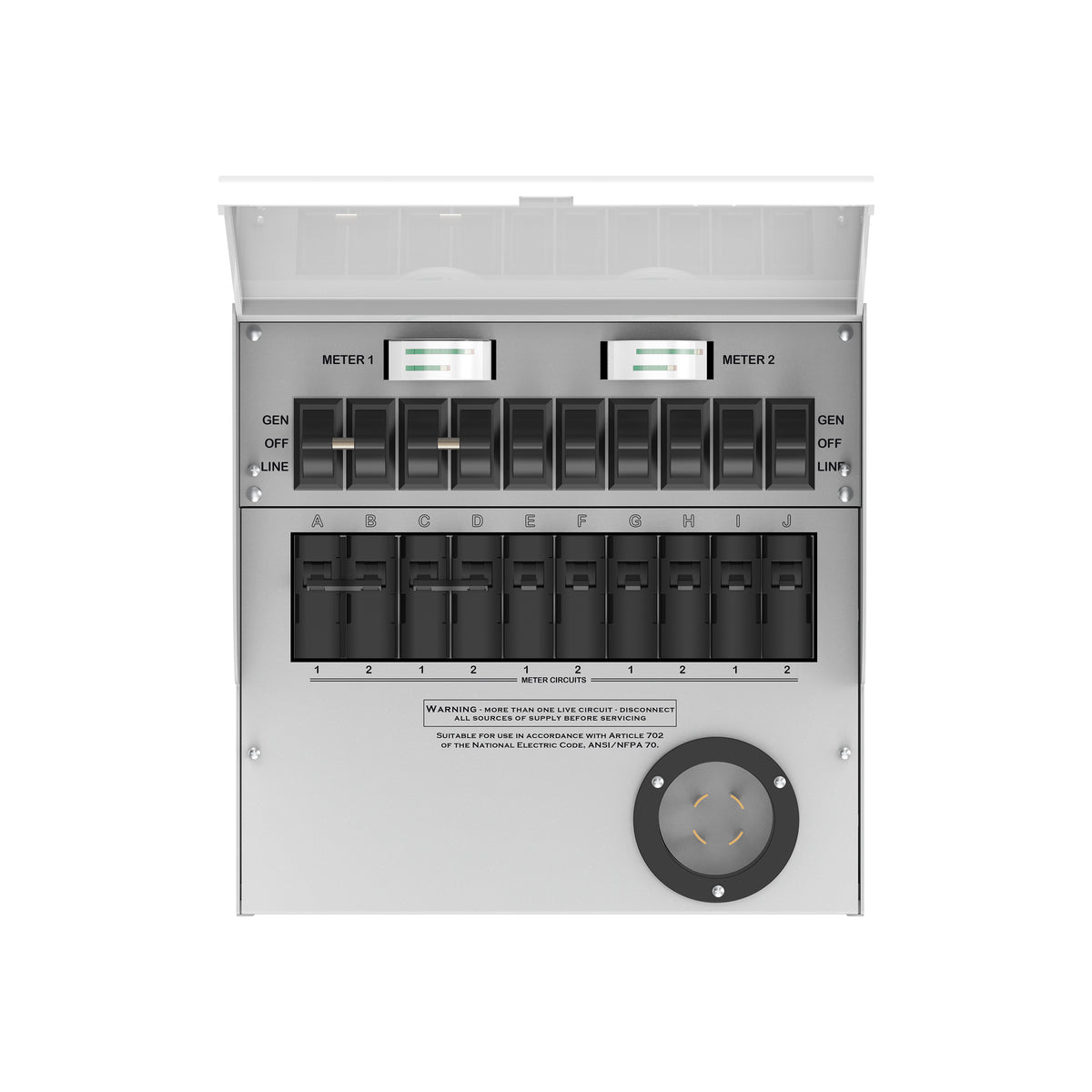

1×Sub Panel With a 30A Inlet Box Inside (Reliance)
1×30A Outlet Box (Reliance)

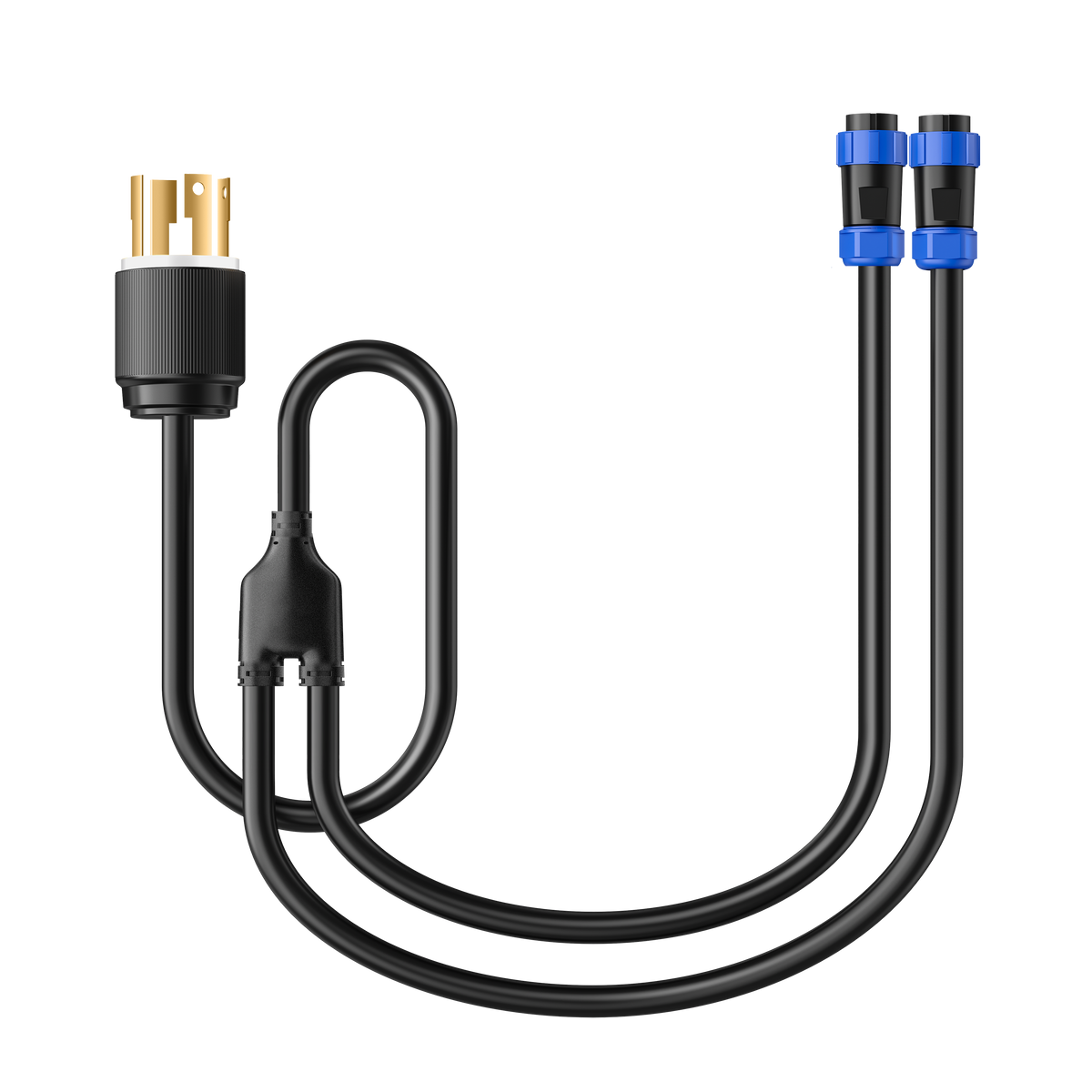

1×30A Split-phase AC Charging Cable

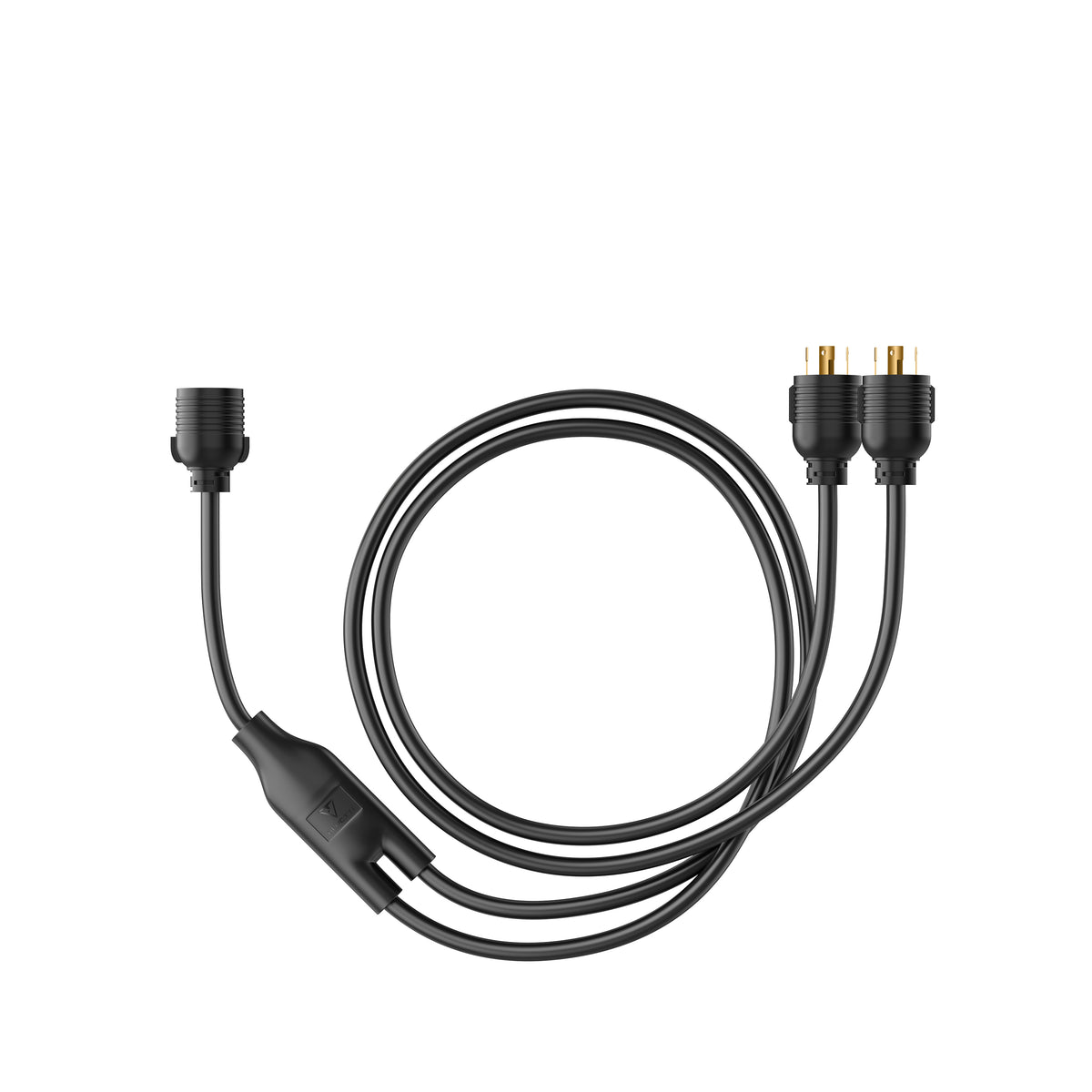

1×2*L14-30 to L14-30C (Connect two EP500Pro to transfer switch via L14-30 AC output ports.)
1×Communication Cable

Click to Download The Manual
Sub Panel With Transfer Switch Manual


Product Model:

Buy Now

Notify Me
Pre-Order

Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support


Why
Embrace Power Without the Strings
With our solar power station, you're in control—enjoy power on your terms, with the flexibility to cancel your subscription whenever you choose.
Energize Your Life, Not Your Expenses
Our subscription is the gateway to simplified solar power—enjoy the benefits without worrying about the costs of ownership.

EP500Pro Standalone Kit

Connect the EP500Pro power system to the home main panel.

EP500Pro Power Suite

Connectthe EP500PRO split phase system to the home main panel (Require2 EP500PRO)

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Specifications

BATTERY INFO


Capacity:
3,072Wh (51.2V, 60Ah)

Type:
LiFePO4 (Lithium Iron Phosphate)

Life Cycles:
3500+ Cycles to 80% Original Capacity

Shelf-life:
Recharge to 80% Every 3-6 Months

Management System:
MPPT Controller, BMS, etc.

OUTPUT


USB-C Port:
1 x 100W Max.

USB-A Port:
1 x 18W USB-A

12V DC Outlet*:
1 x 12V/10A (Car Outlet)
*All Regulated.

INPUT


AC Input:
500W Max.

Solar Input:
200W Max., VOC 12-60VDC, 10A

Car Input:
12/24V from Cigarette Lighter Port

Max Input:
700W, With AC Adatper + Solar Input Simultaneously

RECHARGE TIME


AC:
≈ 6.5~7 Hours at 500W

Solar:
≈ 15.5~16 Hours at 200W
(With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W:
≈ 30 or 15 Hours

AC + Solar:
≈ 5 Hours at 700W
(With prime sunshine, ideal orientation and low temperature)

Solar + Solar:
≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

Dual AC:
≈ 5 Hours at 700W (Extra adapter REQUIRED)

GENERAL


240V Split Phase Bonding:
Yes, work with AC300

Pass-through Charge:
Yes

Weight:
79.6lbs (36.1kg)

Dimensions (LxWxD):
20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

Operating Temperature:
-4-104℉ (-20-40℃)

Storage Temperature:
-4-104℉ (-20-40℃)

Certifications:
UL Standard, CEC, DOE, FCC, CA Prop 65

Warranty:
48 Months (Enter to learn more about BLUETTI warranty policy)
